Guo Zhihang Steel Co., Ltd.
 |
| Place of Origin: | china |
| Brand Name: | BF |
| Certification: | RoHS, ISO9001, ASTM, JIS, GB, EN, ASTMB, SGS |
| Model Number: | 7075, 7475, 7050, 7B50, 7A55, |
| Minimum Order Quantity: | 1 ton |
|---|---|
| Price: | $2850-$3350/ton |
| Packaging Details: | wooden pallet |
| Supply Ability: | 3000ton/month |
| Name: | Hot Rolled Plate | Grade: | 6000 Series |
|---|---|---|---|
| Surface Treatment: | Coated | Delivery Time: | 7-12 Days After Order Placed. |
| Temper 1: | O-H112 , T3-T8,T351-T851 | Width: | 200~2600 |
| High Light: | Aluminum Strip Coil Color Coated,3003-H14 Color Coated Coil,8.0mm Color Coated Coil |
||

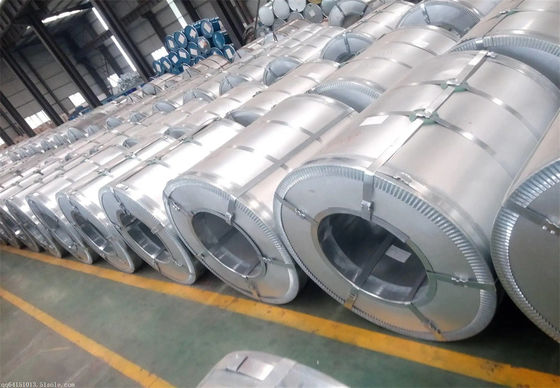

3003-h14 aluminum strip coil 6061 painted sliver
7000 series aluminium alloys have the highest strength of all the series. Zinc is the primary alloying addition. These alloys have excellent fatigue properties. In the T6 condition fracture toughness can be inferior to other alloys. Alloys in series can be spot welded but not fusion welded. If corrosion is a concern, these alloys should be anodized, primed, painted or protected with some type of chemical film.
7075| ALUMINUM 87.32 min | ADDITIONAL ELEMENTS
0.4 Si, 0.5 Fe, 1.2-2.0 Cu, 0.3 Mn, 2.1-2.9 Mg, 5.1-6.1 Zn,0.18-0.28 Cr,0.2 Ti max
Mechanical properties:
Tensile strength:525 MPa,Extensibility:11%,Density:2.82g/cm^3
Application:Wall panel of aircraft upper wing and lower wing,stringer,bulkhead etc.
1.product description
2.chemical composition
| alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Zr | Ti | standard |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28/ | 5.1-6.1 | 0.05 | 0.2 | AMS |
| 7475 | 0.1 | 0.12 | 1.2-1.9 | 0.06 | 1.9-2.6 | 0.18-0.25 | 5.2-6.2 | 0.05 | 0.06 | |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | 5.7-6.7 | 0.08-0.15 | 0.06 | |
| 7B50 | 0.12 | 0.15 | 1.8-206 | 0.1 | 2.0-2.8 | 0.04 | 6.0-7.0 | 0.08-0.16 | 0.10-0.25 | |
| 7A55 | 0.1 | 0.1 | 1.8-2.5 | 0.05 | 1.8-2.8 | 0.04 | 7.5-8.5 | 0.08-0.20 | 0.10-0.25 |
3.company information
we takes pride in the satisfied and loyal customer base, garnered through a commitment to excellence. The vision and unparalleled support from the Board of Directors along with the commitment and expertise of the employees has helped ZhuXia attain the heights of success in a very short period of time.
Hope our endeavours impress you as much it has our existing customers.
